Drawing the route

A route is made up of legs.

Get started

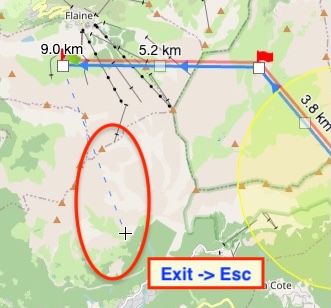

To define a leg, click on the button . This is Edition mode. The pointer becomes a cross. On the map, click on the desired start point. The mouse pointer is connected to the last point by a dotted line. Click again to define a new leg point.

The distance between the two points is displayed. We can add several legs. To finish the drawing of the route, use Esc key. The mouse cursor is released and becomes a card travel cursor again.

Tip

In Edition mode, you can move the map by keeping the left click of the mouse

The length of a leg is automatically displayed. The total length of the road is displayed on the last point and updated in the information bar.

Continue

To continue the route, click on the last point of the route while pressing the Control (Win, Linux) or Command (Mac) key.The mouse pointer is again connected to the last point by a dotted line.

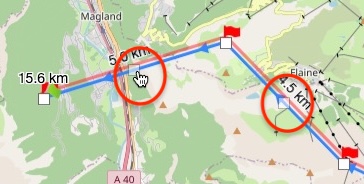

Insertion

Each segment contains in its middle, a point that will allow you to expand the road. Click on a central point of a segment and pull it towards the desired place.

Delete

Click on a point to delete it. The following point immediately the starting point cannot be deleted.

Warning

Mouse clicks must be done precisely on the segment points.
When the mouse is positioned on the point, the cursor trains in hand

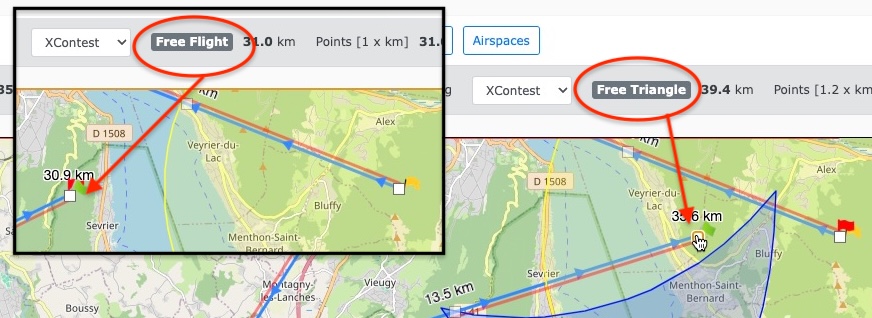

Terminal circle

From the second point, a yellow circle appears. It will be the circle to be reached to complete the flight like a triangle. The diameter of this circle is also dependent on the type of scoring adopted.
